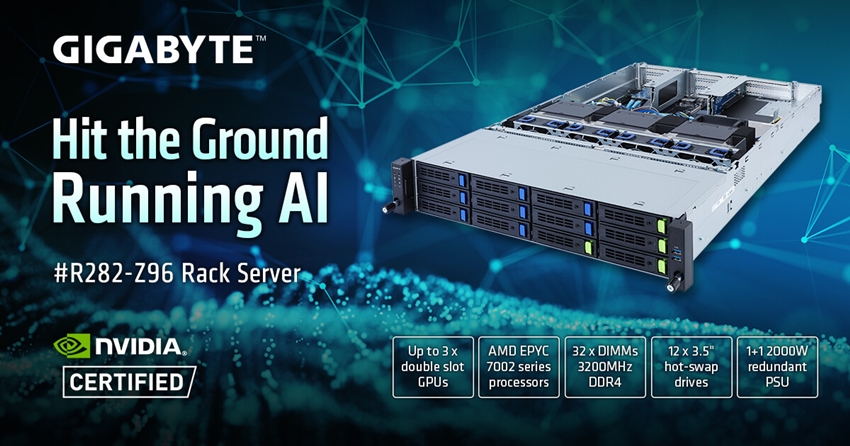

Introduction to R282-Z96:

Balancing storage volume and fast throughput, the R282-Z96 also has high CPU and GPU compute potential. It is a well-balanced server designed for various workloads. The R282-Z96 supports high-end, 280W, dual AMD EPYC 7002 series CPUs, and has 32 DIMMs that support fast 3200MHz (2DPC) memory configuration. For storage, there are 8 x 3.5” bays for SATA drives and 4 x 3.5” hybrid bays for NVMe or SATA drives. SAS drives are also supported with an additional SAS card. For GPU computing, 4 x full-height full-length (Gen4 x16) slots are available, and room for 3 x FHFL double slot GPUs. As well, networking can be expanded with the 2 x OCP mezzanine slots. Onboard the motherboard is a single M.2 drive.

Model Name	R282-Z96
CPU	2 x AMD EPYC 7002 Series Processors
Memory	32 x DIMMs (3200MHz DDR4)
Storage	8 x 3.5"/2.5" SATA 4 x 3.5"/2.5" SATA/Gen4 NVMe
Expansion Slots	4 x FHFL (Gen4 x16) 1 x OCP 3.0 (Gen4 x16) 1 x OCP 2.0 (Gen3 x8) 1 x M.2 (Gen4 x4)
LAN Ports	2 x 1GbE
Power Supply	1+1 2000W 80Plus Platinum

Remote and Multiple Server Management:
As part of GIGABYTE’s value proposition, GIGABYTE provides GIGABYTE Management Console (GMC) for BMC server management via a web browser based platform. Whether for server monitoring, updating BIOS and firmware, or remote management, GMC delivers. Additionally, GIGABYTE Server Management (GSM) software is free to download and used to monitor and manage multiple servers. GMC and GSM offer great value while reducing license and customer maintenance costs.
