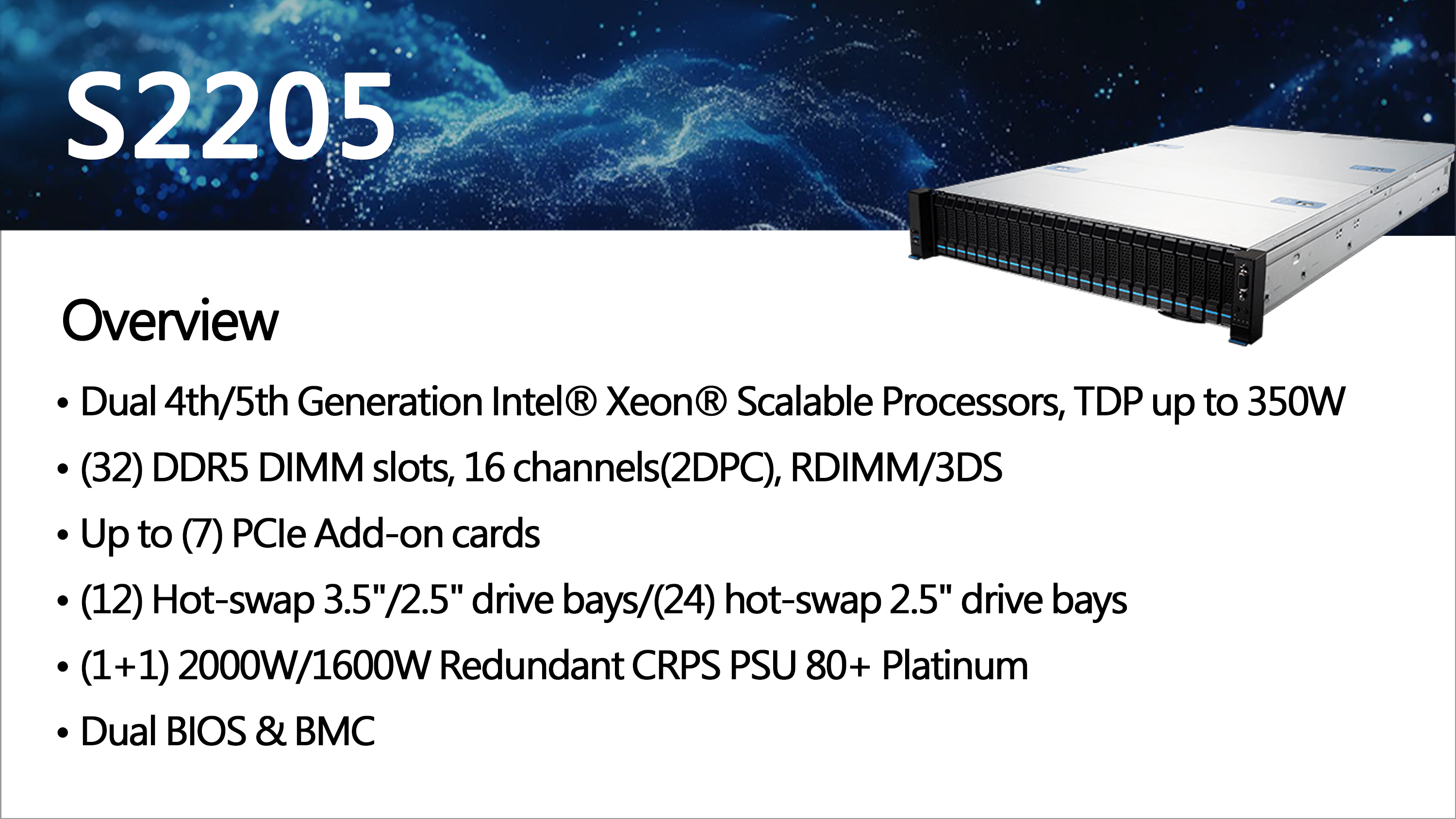

  • 概述
  • 規格



SKU Drive Bays Networking Expansion Slots

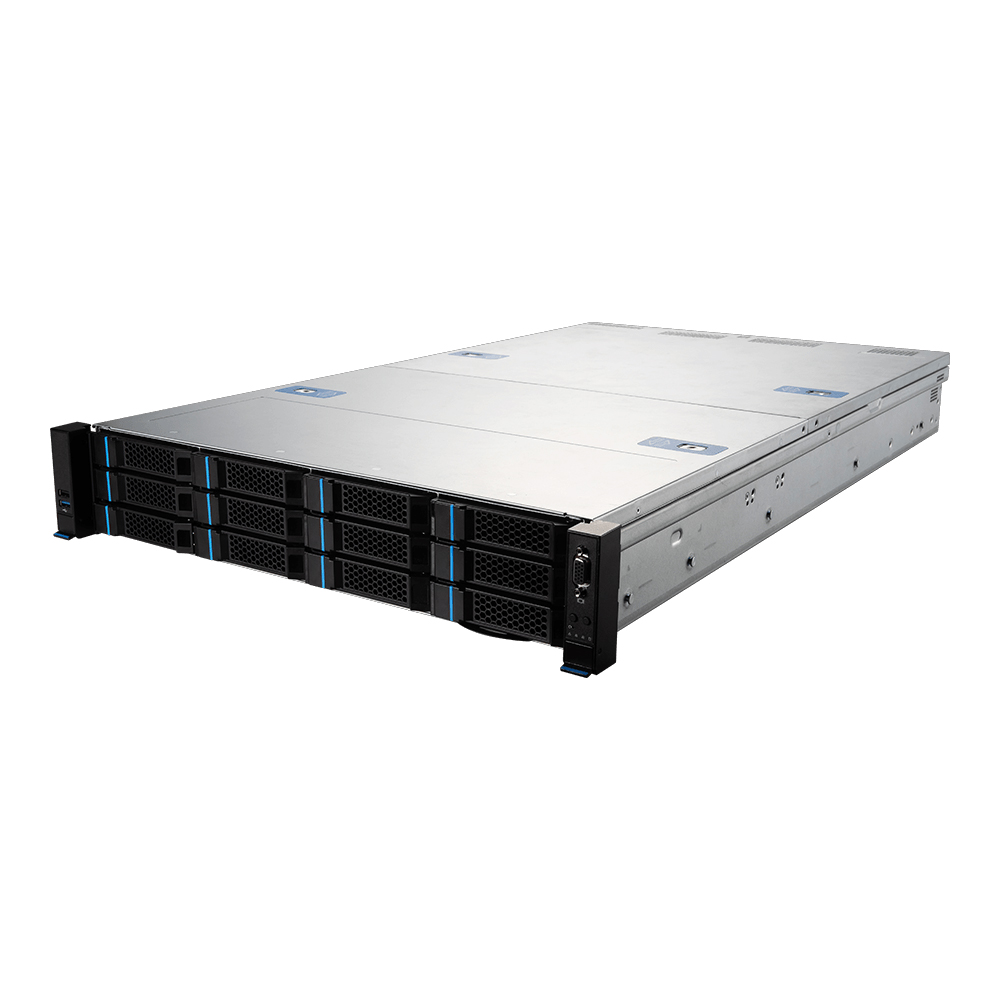

S2205-01 (12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support		 No onboard LAN Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU0 support FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
Riser 3:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU Card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function
S2205-04 (24) Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe with (8) bays also support SATA 3.0/SAS
(4) Hot-swap 2.5" drive bays support SATA 3.0
*SAS card is required for SAS devices support		 No onboard LAN Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function
S2205-01-10G (12) Hot-swap 3.5"/2.5" drive bays support SATA 3.0/SAS/U.2 PCIe 4.0 NVMe
*SAS card is required for SAS devices support		 (2) 10G SFP+ Ethernet Ports (Intel® X710-BM2) through OCP3.0 NIC OCP-321 Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU0 support FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
Riser 3:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU Card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function
S2205-04-10G (24) Hot-swap 2.5" drive bays support U.2 PCIe 4.0 NVMe with
(8) bays also support SATA 3.0/SAS
(4) Hot-swap 2.5" drive bays support SATA 3.0
*SAS card is required for SAS devices support		 (2) 10G SFP+ Ethernet Ports (Intel® X710-BM2) through OCP3.0 NIC OCP-321 Riser 1:
(1) PCIe 4.0 x16 slot from CPU0 supports FHHL PCIe card
Riser 2:
(1) PCIe 4.0 x16 slot from CPU1 supports FHFL GPU card
(2) PCIe 4.0 x16(x8 signal) slots from CPU1 support FHHL PCIe card
OCP3.0:
(1) PCIe 4.0 x16 OCP3.0 slot from CPU0, supports NCSI function
